Product DescribtionProduct Application
1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities, and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).
Seeds and grains can be separated and graded by the suspension and friction characteristics.
Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.
Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.
Feature.Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.

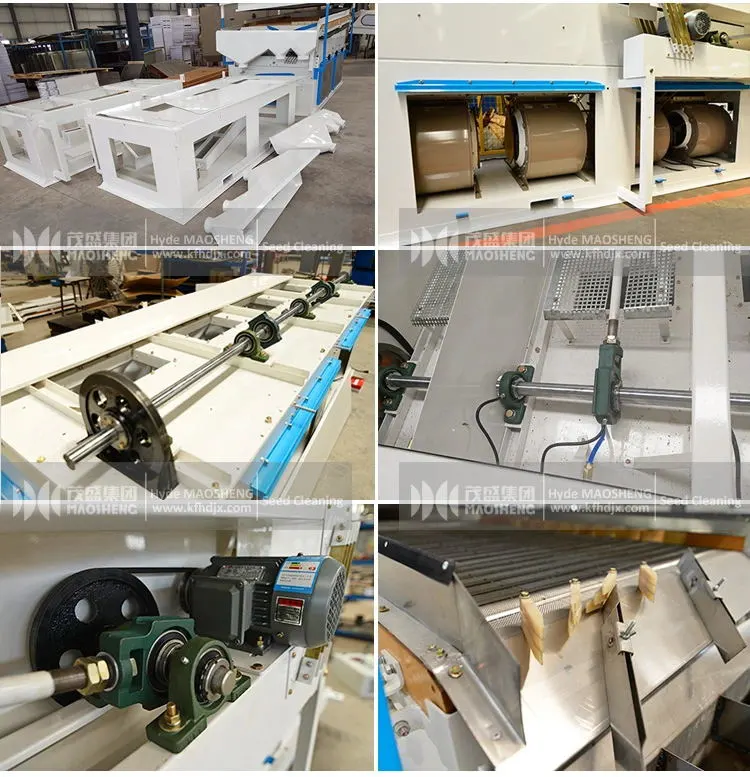

1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.
1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.
|Model||5XZ-3||5XZ-5||5XZ-10||New Type 5ZX-10||5XZ-20|
|Rated Capacity (T/H)||3||5||10||10||15-20|
|Total Weight (Kg)||1000||1400||2300||2200||3500|
|Total Power (kW)||7.45||9.55||19.9||17.57||30.3|
|Sorting Area (m2)||2.48||3.66||5.36||5.42||8.42|
|Selection Rate (%)||≥98.5%||≥98.5%||≥98.5%||≥98.5%||≥98.5%|
|Impurity Removal Rate (Light)||≥99%||≥99%||≥99%||≥99%||≥99%|
|Impurity Removal Rate (Heavy)||≥95%||≥95%||≥95%||≥95%||≥95%|
Application of 5XZ Gravity Table

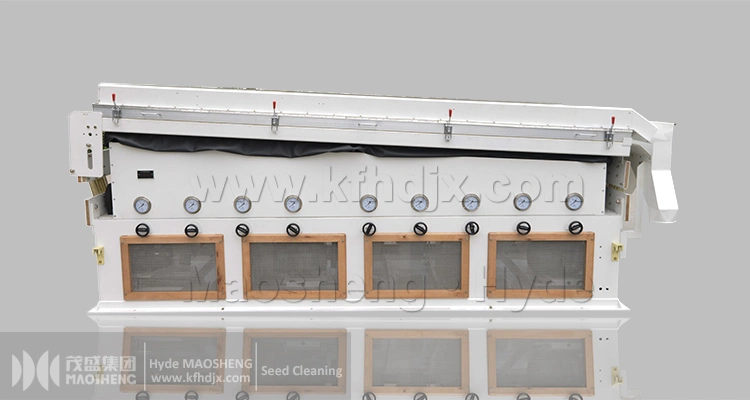

5XZ series Gravity Separator
is widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.
WHY CHOOSE US
1) 40 YEARS manufacturing experience since 1976.
2) CHINA TOP 10 Grain Processing Machinery
3) Member of 13 China national standards DRAFTER in grain processing industry.
4) 75 PATENTED technologies and products.
5) 600,000 square meter production area.
6) Over 100 experienced engineers, research staff and technicians.
7) State-of-the-art facilities. Advanced imported CNC machines for function parts.
8) Full range of service, from single machine to turnkey systems in grain and flour industry.
9) Machinery and equipment quality tested by domestic and global market, rich installation and trouble-shooting experience.
Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.
With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.
Kaifeng Hyde Machinery, separated in 2000 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines.
To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013 and NoroGard Sweden in 2016.
With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.Member of 13 China national standards DRAFTER in grain industry. 79 patents including 4 inventions (till 2018). After Sales Service
FAQQ: What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.
Q: Can you make the machines as per our special requirement?
A: Yes, OEM/ODM service available.
Q: What about the lead time?
A: 10~30 workdays, depending on the type of machine and parts availability.
Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash accepted.
30% deposit with purchase order, 70% balance paid before shipment.
Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.
Spare parts and technical solutions provided timely for machine failure.
Q: How do we visit your company?
A: Hyde Machinery is located in Kaifeng City, Henan Province, China.1 hour drive from nearest Zhengzhou airport
Contact us if you need more details on Almond Gravity Separator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Raisin Seed Gravity Separator、Millet Gravity Separator. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Gravity Separator
