Product Description
1.HZZD super Air Screen fine
Grain Cleaner is suitable for large capacity grains and seeds cleaning, sorting, grading, which can effectively remove dust, light impurities, big and small impurities, blighted and broken seeds through the screen and winnowing mechanical.
2. HZZD super Air Screen fine grain cleaner has Self-contained air suction separation system, and can effectively separate light impurities and dust by equipping ventilation pipes and network.
3. The feeding end of HZZD Super air screen fine grain cleaner is provided with a multipath distributor, which can uniformly distribute the materials to the sieve of each layer to ensure the efficiency of cleaning, sorting and grading.
Working Principle

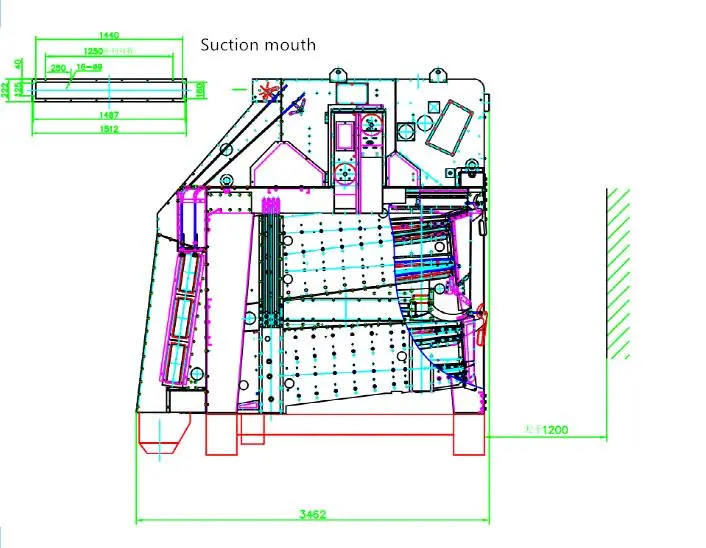

HZZD multi-deck rotary cleaner consists of machine frame, screen body, drive transmission system, hanging system, grain inlet box and output box, screen fame, and air suction channel, etc. HZZD multi-deck rotary cleaner works in plane rotary movement, with proper screen holes and screen plates, it can clean the impurity from products, or grade one grain from another by different particle sizes.
Technical Parameter
| Model | HZZD150*200 | HZZD200*200 |
| Capacity | T/H | 120 | 150 |
| Size(L*W*H) | mm | 3462*2445*3892 | 3462*2945*3892 |
| Weight | Kg | 6100 | 7100 |
| Power | kW | 3+0.75 | 3+0.75 |
| Suction Air Volume | m³/min | 200 | 260 |
NOTICE: Above technical data can vary due to continued development, or different machine configurations.
Feature
1.HZZD series rotating composite multi-layer screen has the following characteristics:
2.Large effective screening area, high yield, and good cleaning and grading effect;
3.The suspended screen body of the combined boom is stable in operation and low noise;
4.The feed end is equipped with multiple uniformly distributed material distributor, which can evenly distribute the material to all layers of screen grid and ensure screening and classification efficiency;
5.Small metal mesh thickness, high strength and stiffness, and flat screen surface;
6.The screen frame side plate and screen body side plate are fixed by
Bolts, so that the screen frame and screen box are integrated by themselves. 7.Overall strength increased;
8.It is convenient and simple to install the mesh case, and the same pore size is interchangeable;
9.Modular structure of transmission, complete replacement, saving maintenance time; 10.Low power consumption.
Why Choose Us
1) 40 YEARS manufacturing experience since 1976.
2) CHINA TOP 10
Grain Processing Machinery Manufacturing Company.
3) Member of 13 China national standards DRAFTER in grain processing industry.
4) 79 PATENTED technologies and products.
5) 600,000 square meter production area.
6) Over 100 experienced engineers, research staff and technicians.

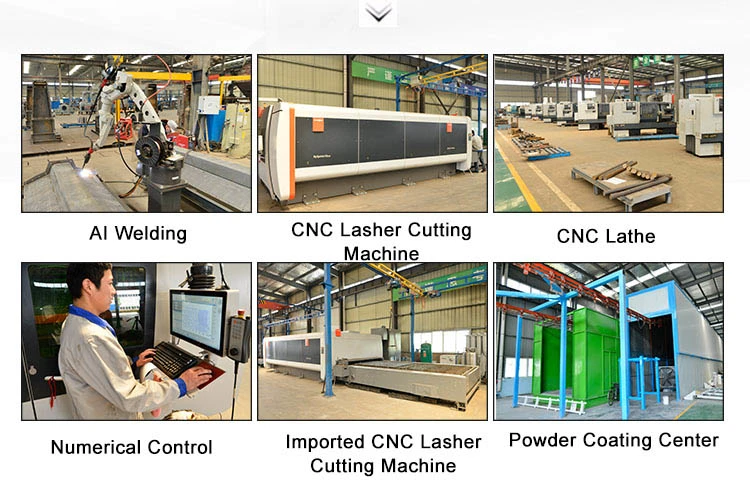

7) State-of-the-art facilities. Advanced imported CNC machines for function parts.
8) Full range of service, from single machine to turnkey systems in grain and flour industry.
9) Machinery and equipment quality tested by domestic and global market, rich installation and trouble-shooting experience.
Company Files

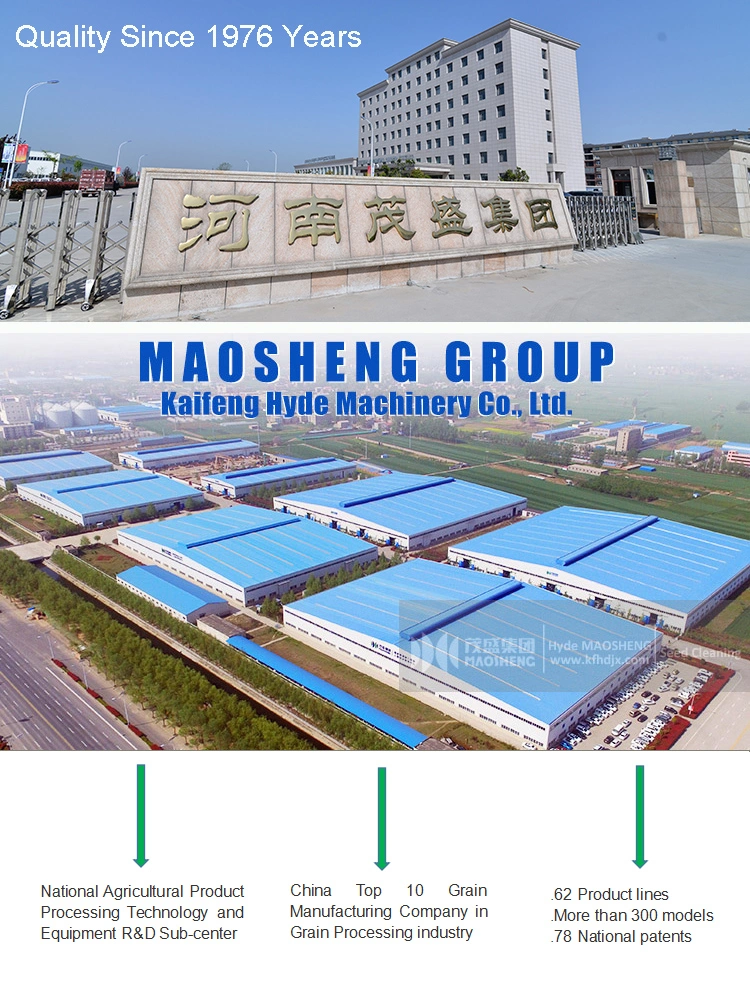

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.
With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.
Kaifeng Hyde Machinery, separated in 2000 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines.
International Cooperation
To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013 and NoroGard Sweden in 2016.
Domestic Partner
With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.
Member of 13 China national standards DRAFTER in grain industry. 79 patents including 4 inventions (till 2018).
Our ServicePre-sales Service.
1.. Technical Consulting Service
Our wide product range enables us to provide flexible, efficient and reliable equipment and complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit
Before placing orders, customers are warmly welcome to visit Hyde and our facility. In-sales Service.1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for freeAfter-sales Service.1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems..
FAQQ: What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.
Q: Can you make the machines as per our special requirement?
A: Yes, OEM/ODM service available.
Q: What about the lead time?
A: 10~30 workdays, depending on the type of machine and parts availability.
Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash accepted.
30% deposit with purchase order, 70% balance paid before shipment.
Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.
Spare parts and technical solutions provided timely for machine failure.
Q: How do we visit your company?
A: Hyde Machinery is located in Kaifeng City, Henan Province, China.1 hour drive from nearest Zhengzhou airport.
